SLIDER-TYPE DISHWASHER PDX-1002
| MODEL | PDX-1002SERIE |
| TYPE | ELECTRIC |
| TOTALRATEDLQAD | 5KW/7W/SkW/12H |
| ELECTRICALRATNG | 220V,50Hz,1PH 390,50Ht,3PH |
| CAPHCITY (Racks,Plates) | 50/h,1,50/h |
| CYCLETIME | 40-285 sec(pefaut:7) |
| WASH&RNSE TANK | 42L,28L |
| WA5H&BNSE TEMPERATURE | 65-70℃,85-95C |
| RINSEWATERCONSUMPTION | 3L/min |

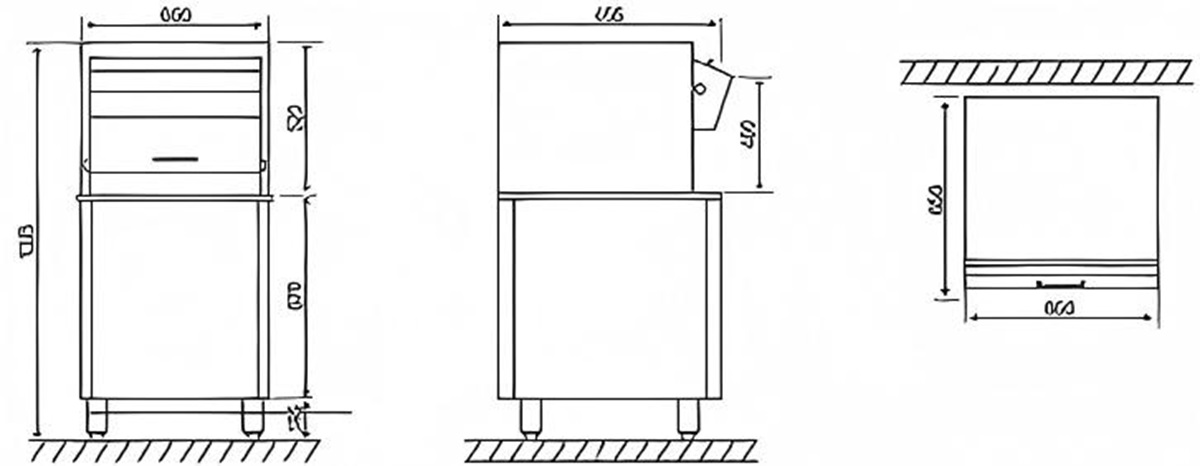

| DIMENSION/Outer) | 660×665×1375mm |
PRODUCT ADVANTAGES

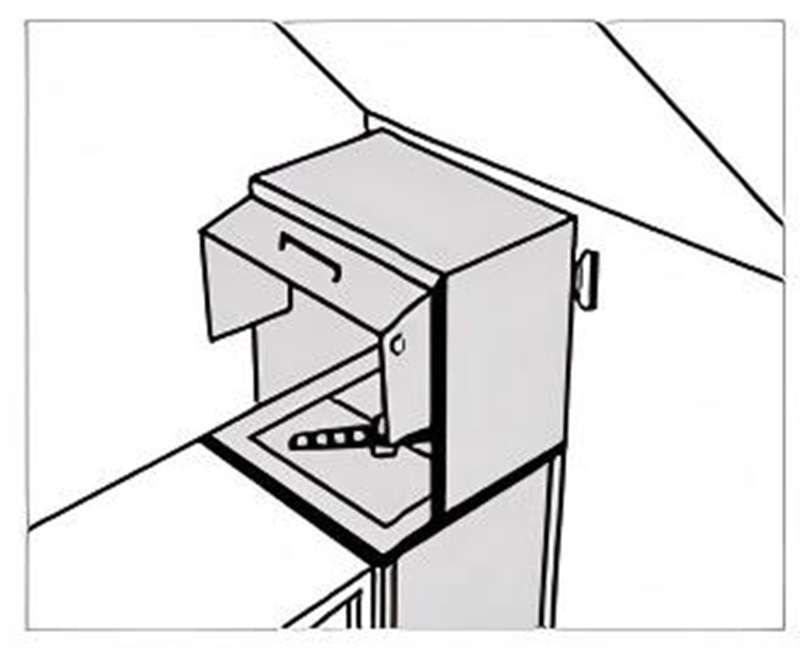

| 1. Slider Cap Design :
Dishwasher door can be opened by simply sliding the door cap inwards. This design saves kitchen & clearance space above the machine by 40~50 CM. The top can also be used as storage space. |
| 2. 3 Heaters (Heating Elements) :
Total of 3 heaters are installed; 2 heaters in the rinse tank, 1 heater in the wash tank. This allows the water to be heated faster and maintain high temperature which enables the dishwasher to be used continuously. |
| 3. “S-Shaped” Stainless Wash Arms :
Specially designed “S-shaped” stainless wash arms can provide maximum hygiene by using high pressure jet nozzles and reaching the corner blind spots. |
| 4. Electrical Compatibility :
Various electrical specifications are available from 220V and 380V. Various total rated loads are available at 5kW, 7kW, 9kW and 12kW. |

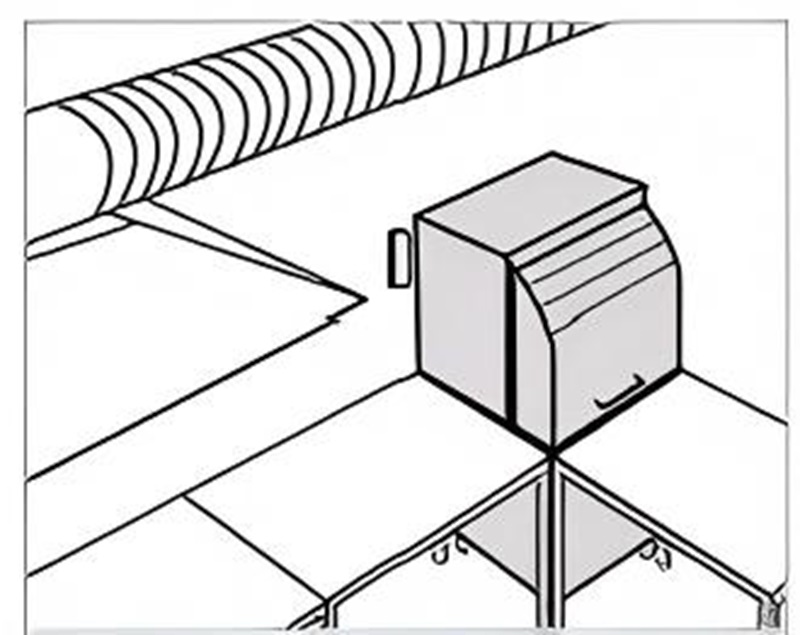

| 5. WHERE-TO-USE
Slider-type dishwashercan be used in limited kitchen space;under the cabinet,shelf,stairs,bood duct etc.It saves an extra clearance space of 40-50CM above the dishwashercompared to regular door-type dishwasher. |
