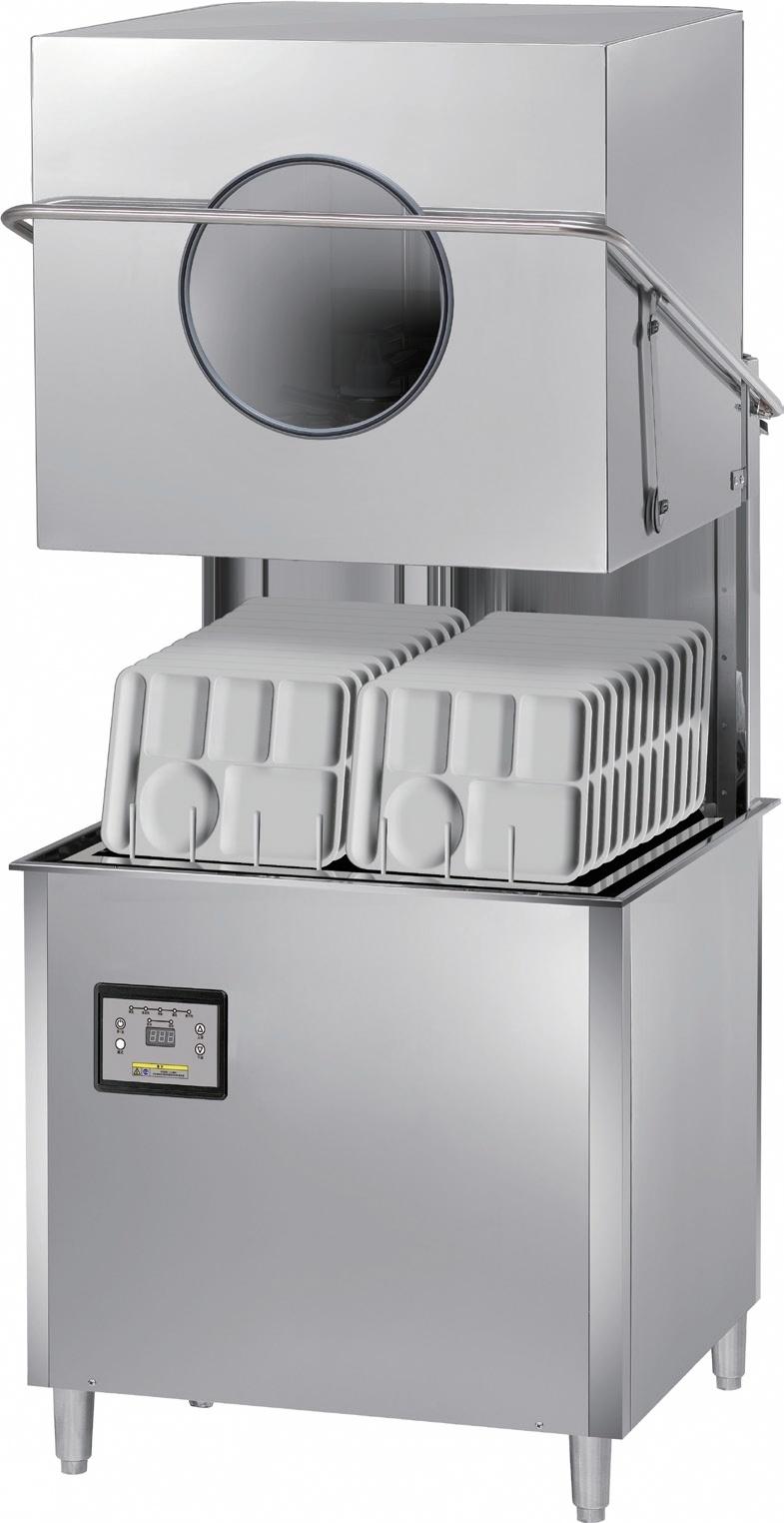

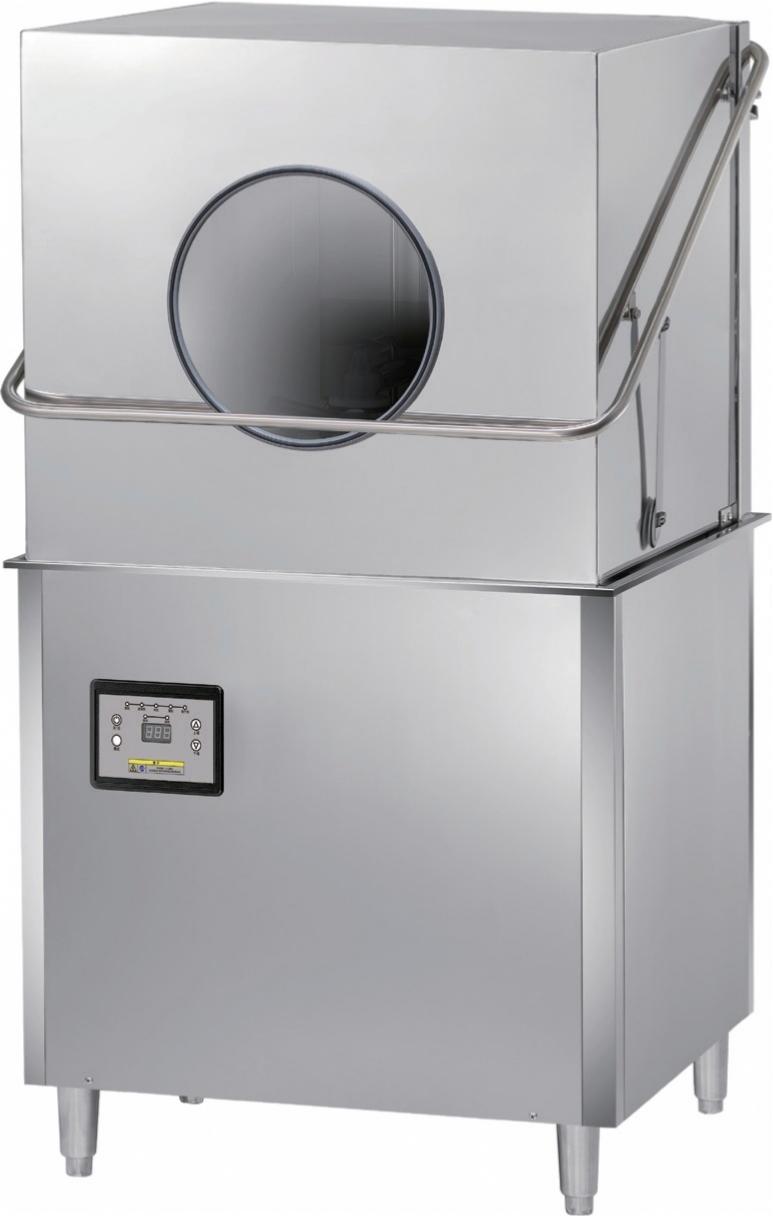

EXTRA WIDE DOOR-TYPE DISHWASHER PDX-1005
DUAL WASH ARM SYSTEM
The PDX-1005 has an additional fixed “U-shaped” wash arm located at the top. When the rotating wash arms in the middle activate, the “U-shaped” wash arm also sprays pressurized water through fixed jet nozzles for the same duration. This helps increase the overall washing quality and remove stubborn stains easily, especially for larger-sized dishware. Since the washing surface is increased, it can efficiently cover all the corners and blind spots, as well as being able to wash different shapes of equipment.
Product Details
Product Specifications:
| MODEL | PDX-1005 SERIES |
| TOTAL RATED LOAD | 17.0 kW |
| ELECTRICAL RATING | 380V,50Hz,3PH |
| CAPACITY (Trays) | 500~800/h |
| INLET OPENING HEIGHT | 550 mm |
| CYCLE TIME | 40~285 sec(Default:121) |
| WASH &RINSE TEMPERATURE | 65~70℃,85~95℃ |
| WASH TANK,RINSE TANK | 77L,39L |
| WASH PUMP | 1.5kW(2HP),380V,50Hz,3p |
| HEATER | 6.0 kW,3.5kW,2.1kW |
| RINSE WATER CONSUMPTION | 3L/min |
| DIMENSION(Outer),WEIGHT | 875×930×1550 mm,120 KG |
| MODEL | DIMENSION | SPECIFICATION | RACK SIZE | OPENING HEIGHT | TANK SIZE |

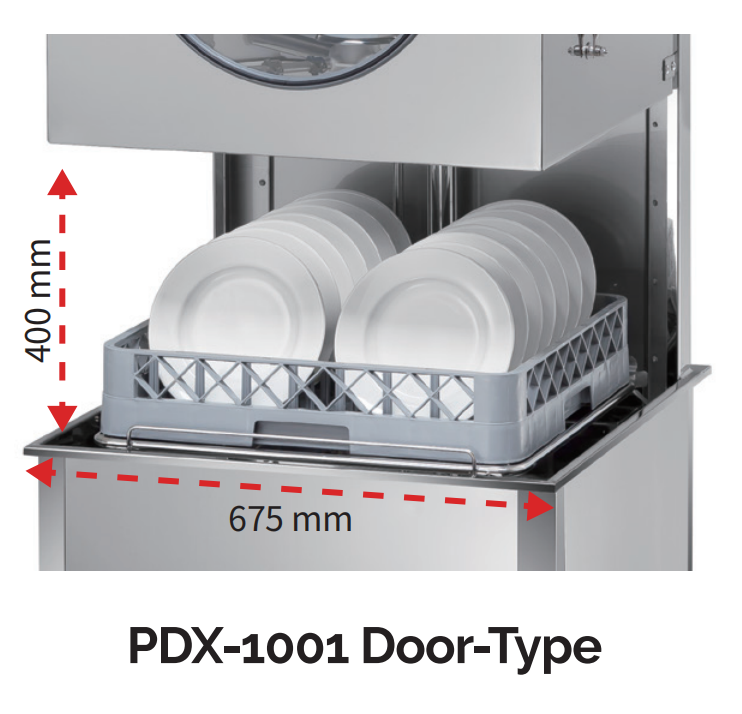

| PDX-1001 | 680×780×1355 mm | 5kW,7kW/220V | 500×500 mm | 400 mm | Wash Tank:42L |
| Door | 5kW~12kW/380V | (International) | Rinse Tank:28L | ||

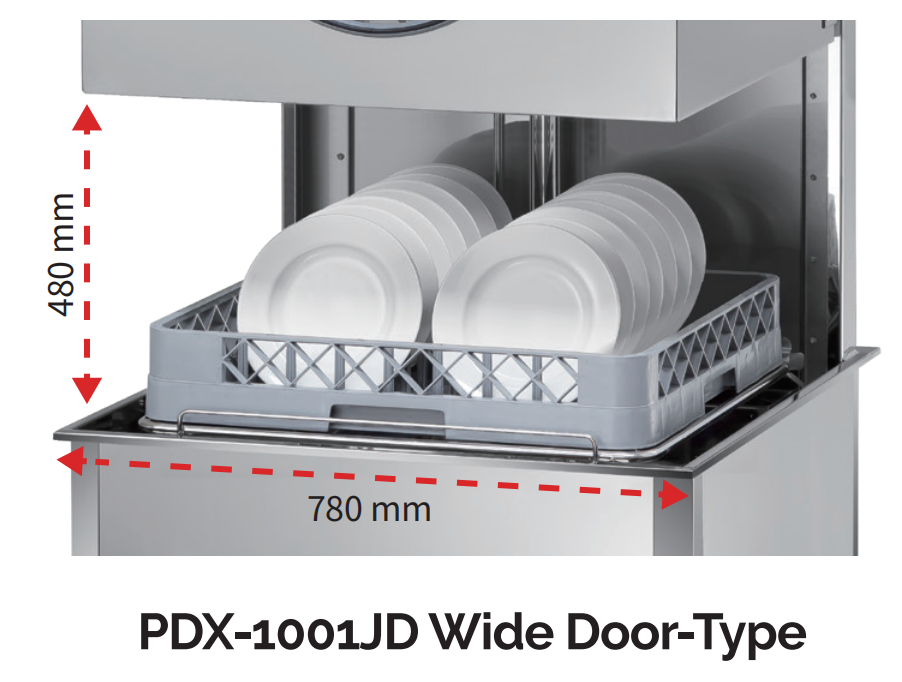

| PDX-1001JD | 780×890×1410 mm | 12kW,15kW/380V | 600×600 mm | 480 mm | Wash Tank:68L |
| Wide Door | (Customized) | Rinse Tank:38L | |||
| PDX-1005 | 875×930×1550 mm | 17kW/380V | 725×720 mm | 535 mm | Wash Tank:77L |
| Extra Wide Door | (Customized) | Rinse Tank:39L |
Product Features：

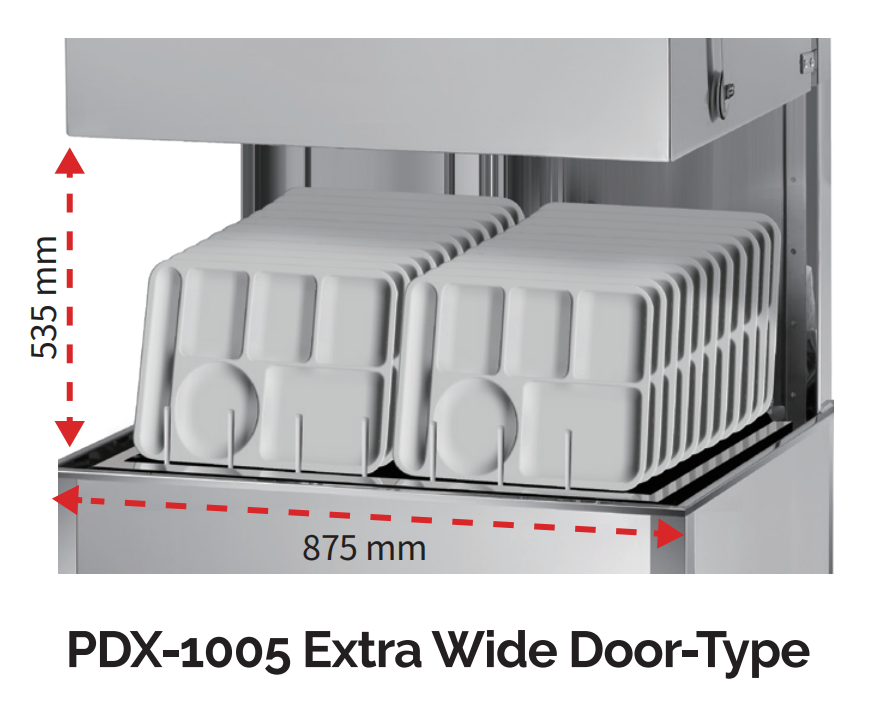

| 1.Increased Size and Opening Height : PDX-1005 is 50% larger than regular door-type dishwasher. Inlet opening height reaches up to 550 mm which allows to wash more and larger dishware such as trays, pots, pans etc. |
| 2.Dual Wash Arm System : “U-shaped” fixed wash arm and “S-shaped” rotating wash arms operate together at the same time to provide excellent wash quality. |
| 3.Powerful Wash Pump:Powerful 2 HP wash pump provides high pressure water spray. |
| 4.Built-in Ultraviolet (UV) Lamp:Ultraviolet (UV) light is activated during and after the wash to effectively sterilize germs such as bacteria, virus etc. |
| 5.Changeable Stainless Steel Rack (fixed):725 x 720 mm sized changeable stainless rack can be used as “flat or pin” rack depending on the type of dishware. |
