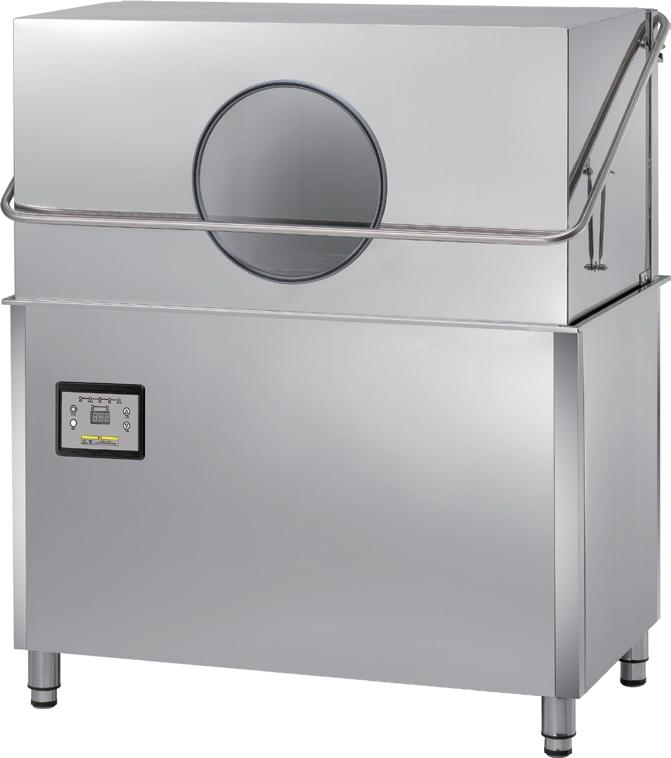

DOUBLE DOOR-TYPE DISHWASHER PDX-1004
RACK CONVEYOR ALTERNATIVE

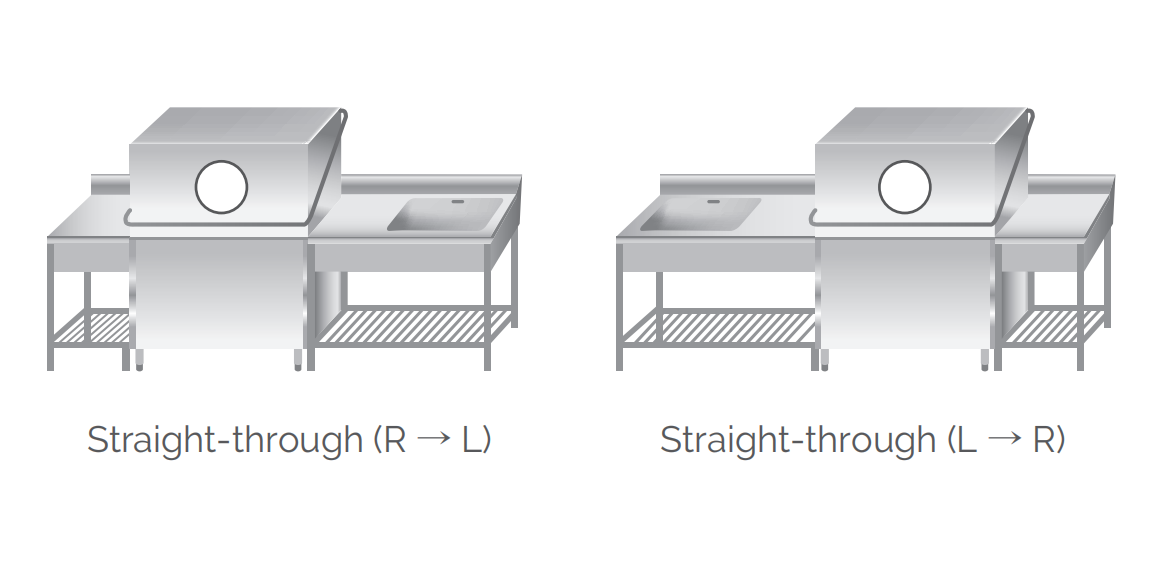

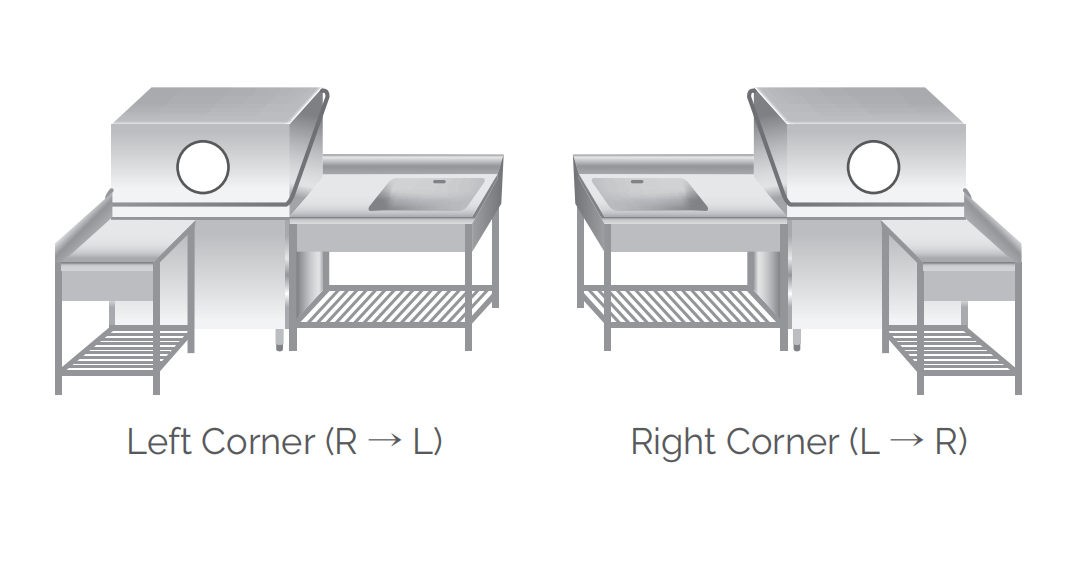

Users who require heavy-duty warewashing solutions equivalent to rack conveyor dishwashers are highly recommended to use the double door-type dishwasher. This model does not require both left and right side sinks and work tabling, which can solve limited kitchen space problems. It can also be installed in an L-shaped corner configuration, similar to a regular door-type, and wash twice the dishware capacity at once.
Product Details
Product Specifications:
| MODEL | PDX-1004 SERIES |
| TOTAL RATED LOAD | 18.0 kW,20.0kW |
| ELECTRICAL RATING | 380V,50Hz,3PH |
| CAPACITY(Racks,Plates) | 100/h,3,000/h |
| INLET OPENING HEIGHT | 420 mm |
| CYCLE TIME | 40~285 sec(Default:117) |
| WASH&RINSE TEMPERATURE | 65~70℃,85~95℃ |
| WASH&RINSE TANK | 82L,38 L |
| HEATER | 8.0 kW,6.0 kW,2.1kW |
| RINSE WATER CONSUMPTION | 6L/min |

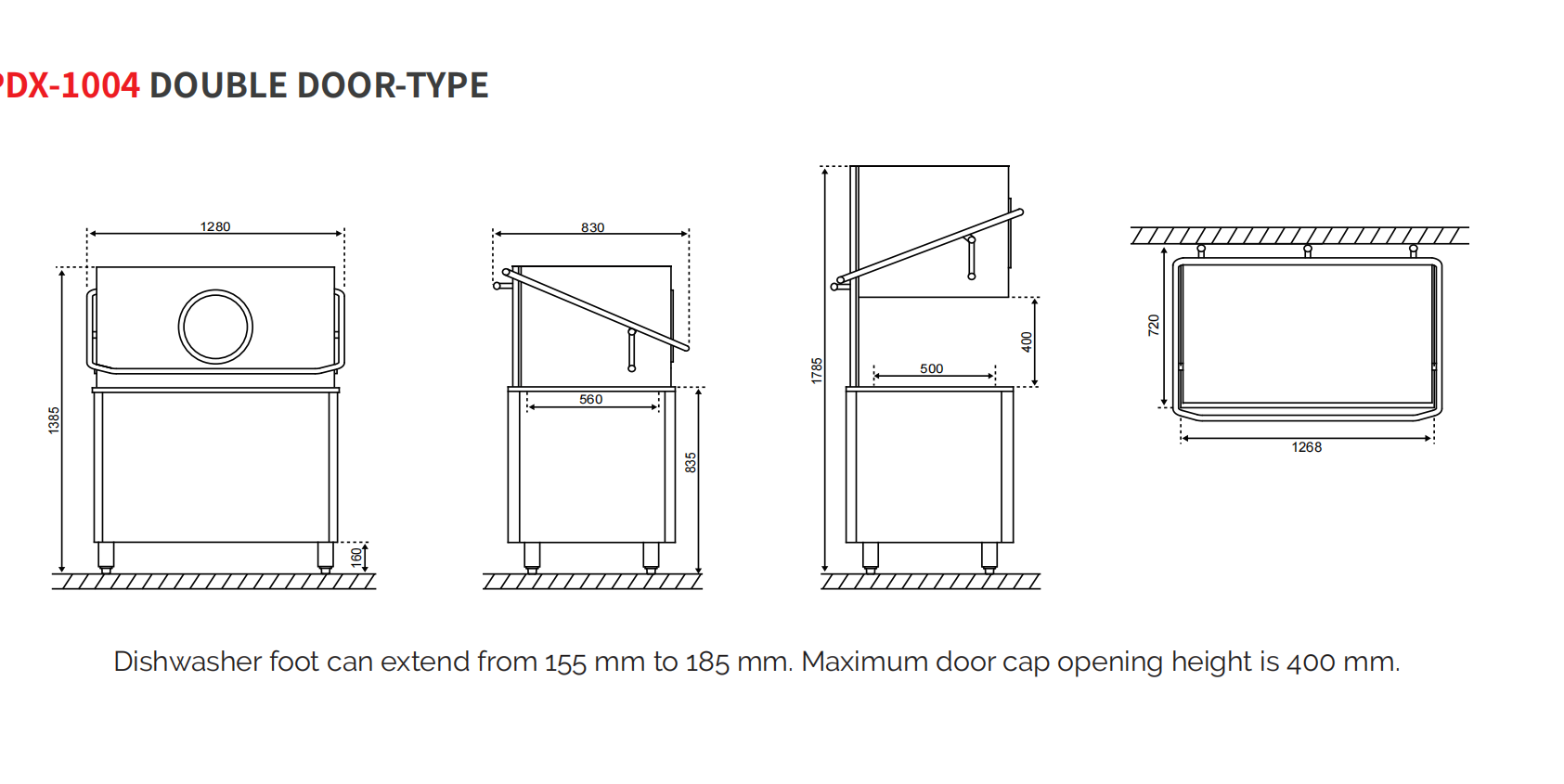

| DIMENSION(Outer) | 1280×830×1385 mm |
Product Features：

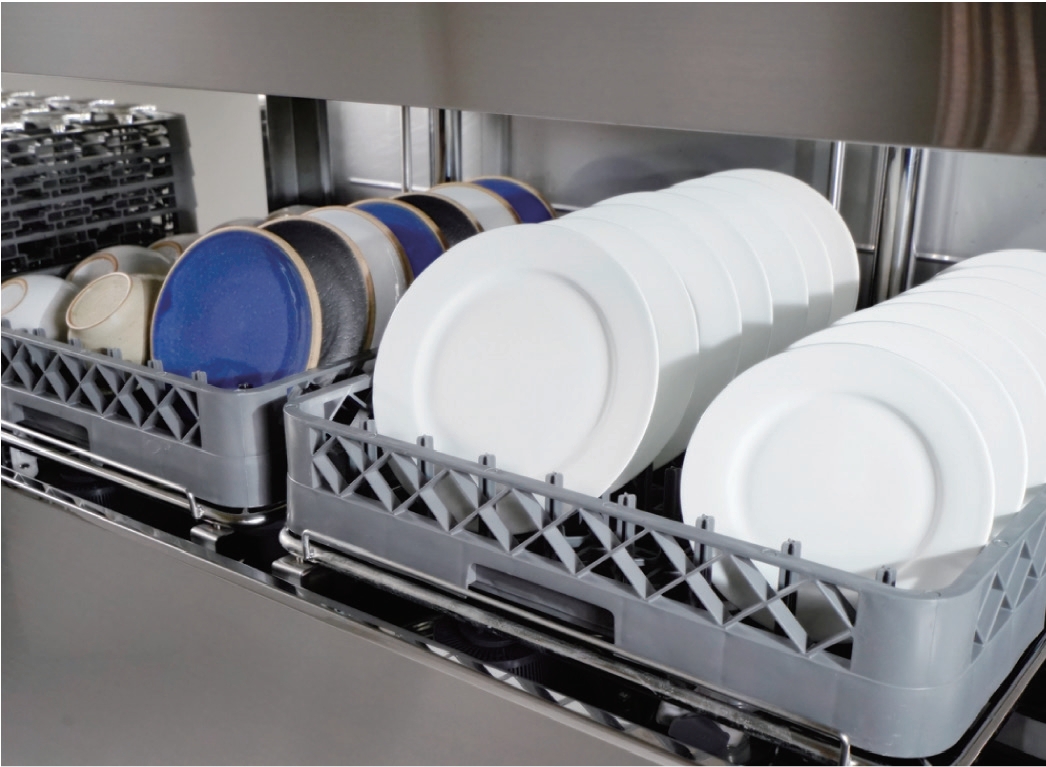

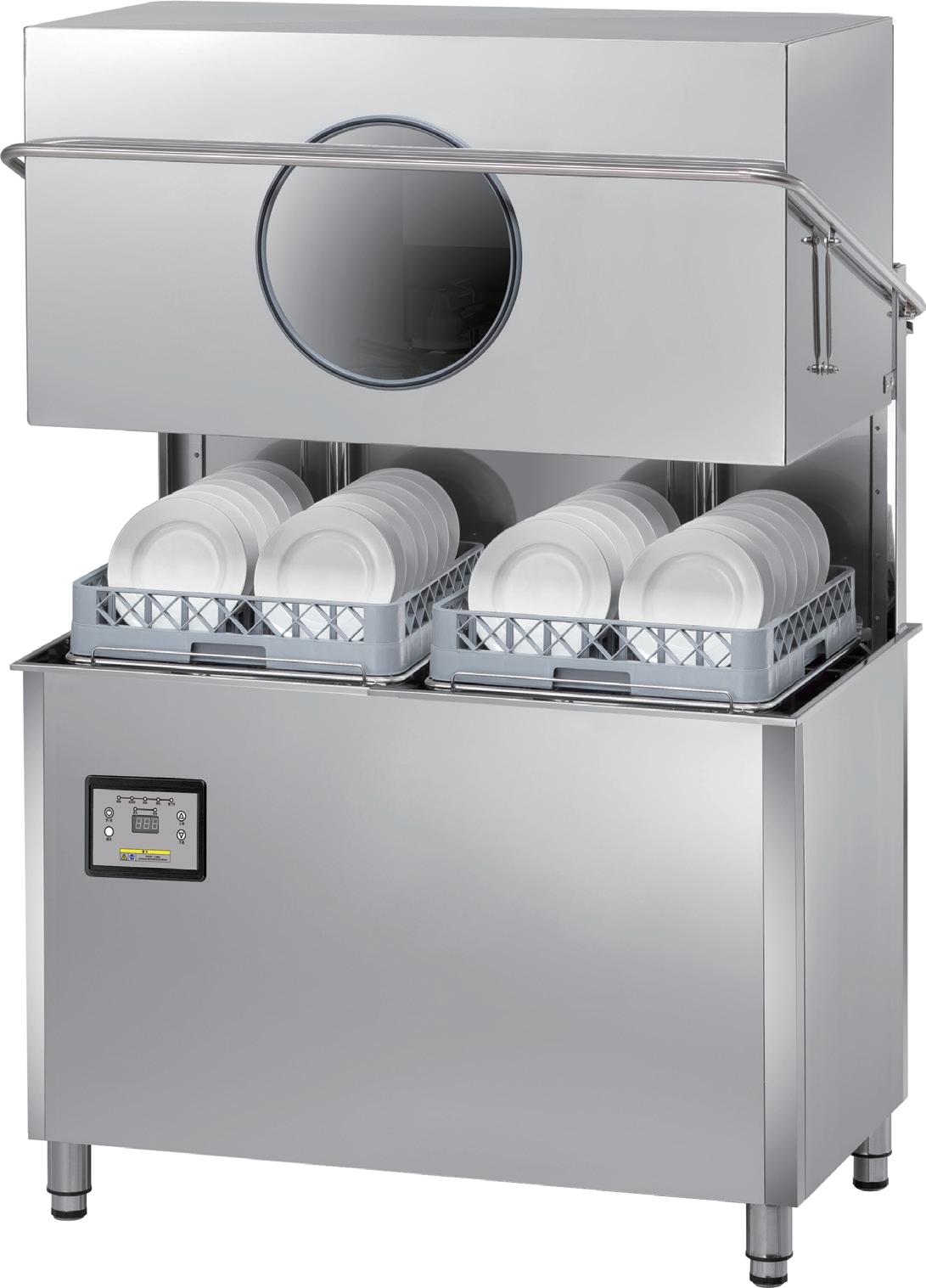

| 1.Double Capacity :Double-wide wash chamber can wash 2 racks efficiently at once. |
| 2.Double Rinse Pumps :High-quality rinse pumps are installed at each side of the rinse tanks for better overall rinse quality. |
| 3.“S-shaped”Stainless Wash Arms :“S-shaped”stainless wash arms provide maximum hygiene by using high pressure jet nozzles and reaching corner blind spots. |
| 4.Tempered Glass Window :Washing and rinsing processes are observable through the tempered glass window to ensure dishware hygiene and machine operation. |
| 5.3 Heaters (Heating Elements) ：Total of 3 heaters are installed; 2 heaters in rinse tank, 1 heater in wash tank. This allows the water to be heated faster and maintain high temperature which enables the dishwasher to be used continuously. |
