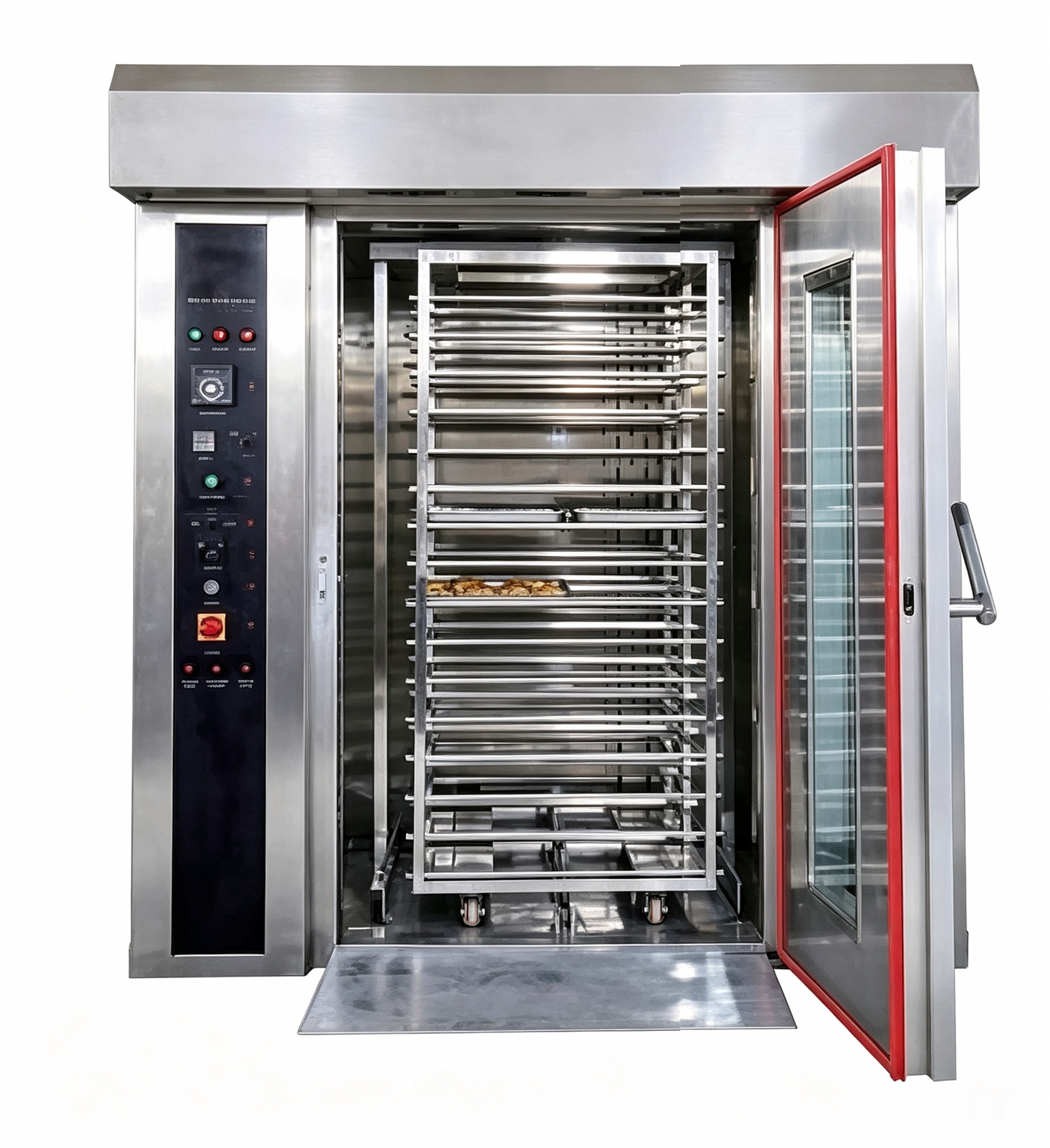

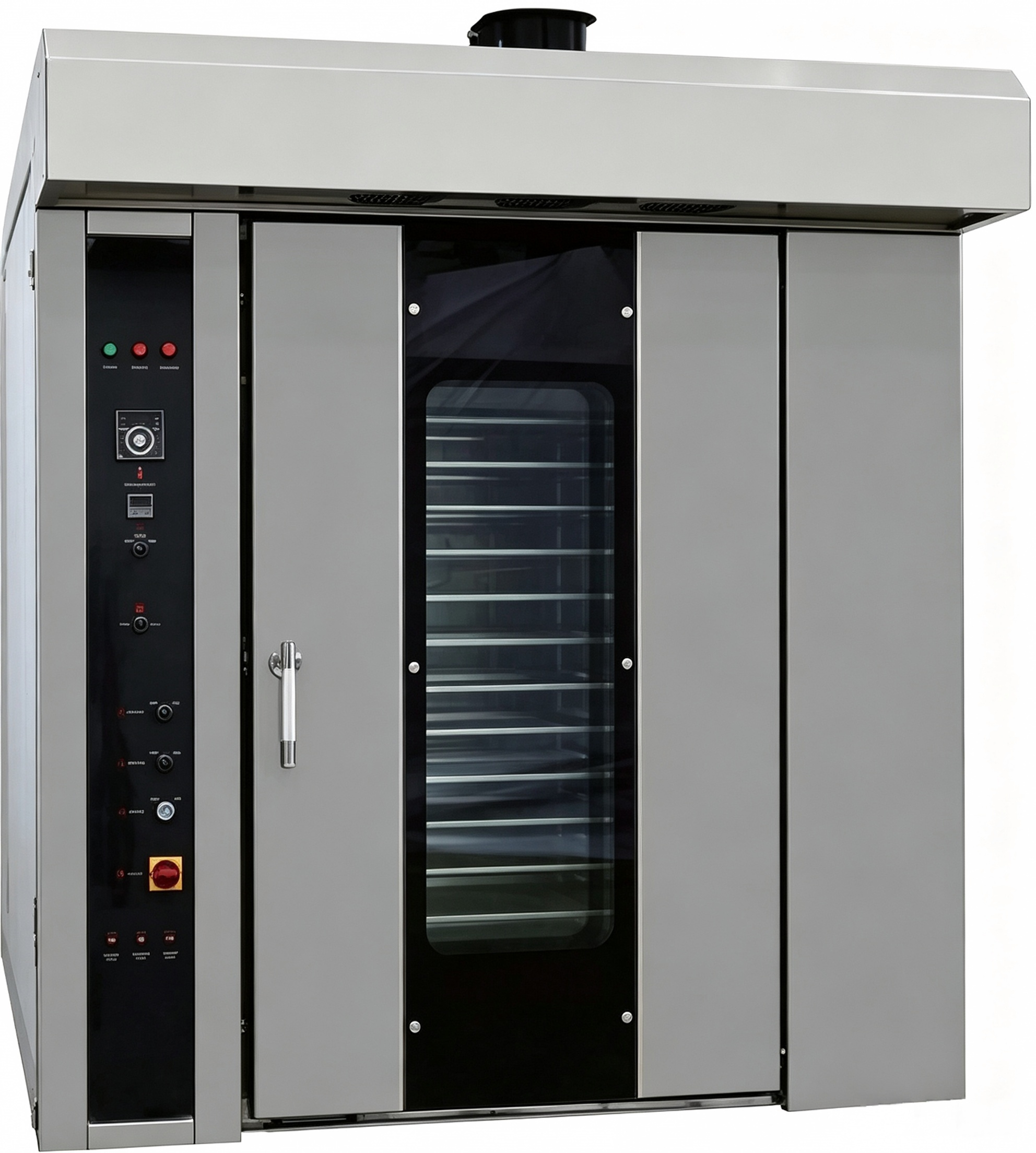

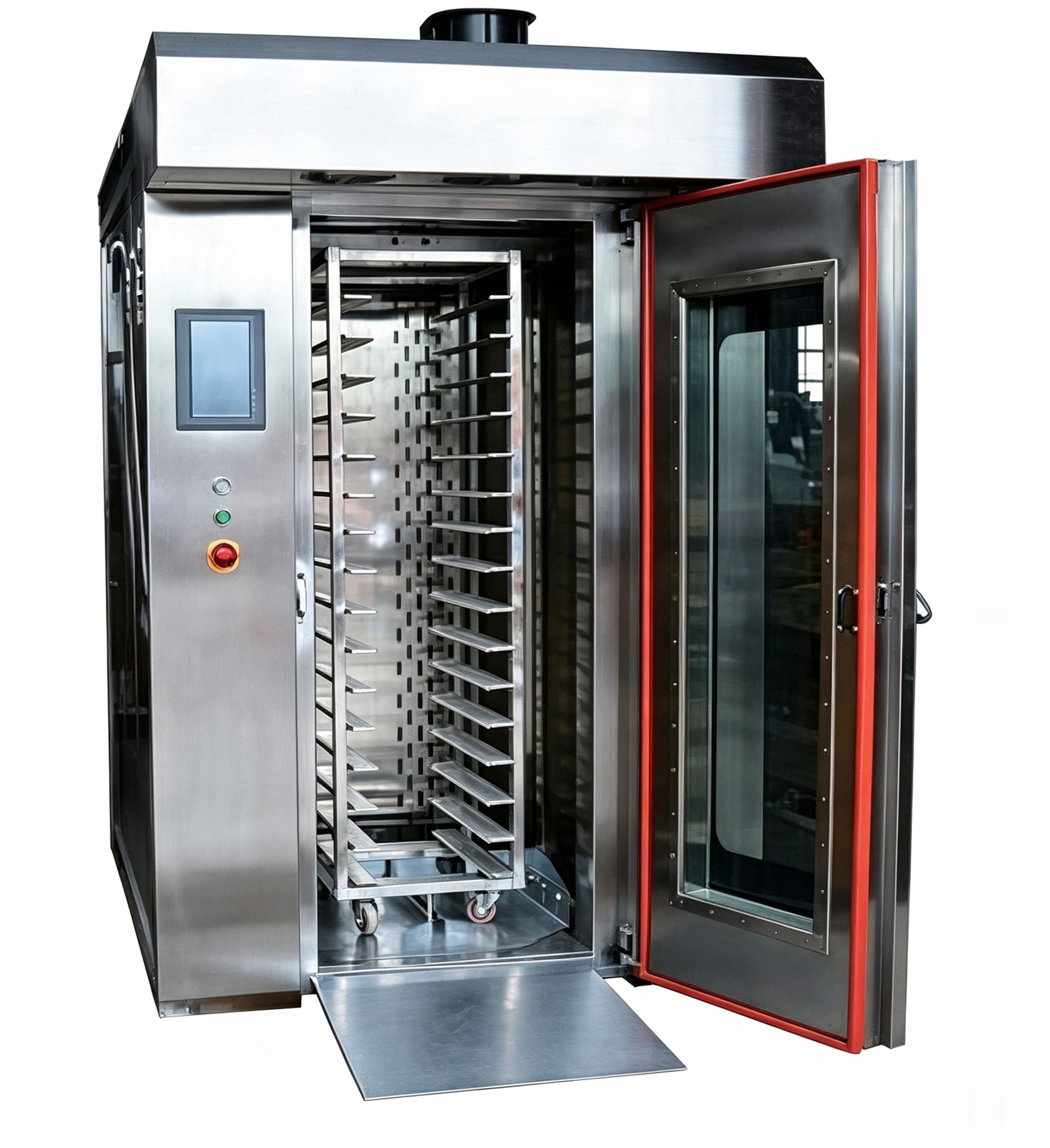

Hot Air Rotary Oven

Model	Capacity	Dimensions (mm)	Tray Size (mm)	Voltage	Power	Temp. Range	Energy Source
DT-12D	12 Trays	1400 x 1980 x 2000	400 x 600	380V/3N	27KW	20-300℃	Electric
DT-16D	16 Trays	1400 x 2235 x 2420	400 x 600	380V/3N	36KW	20-300℃	Electric
DT-32D	32 Trays	1660 x 2600 x 2420	400 x 600 / 800 x 600	380V/3N	46KW	20-300℃	Electric
DT-64D	64 Trays	2008 x 2885 x 2420	400 x 600 / 800 x 600	380V/3N	72KW	20-300℃	Electric

Model	Capacity	Dimensions (mm)	Tray Size (mm)	Voltage	Power	Temp. Range	Energy Source
DT-12Q	12 Trays	1400 x 1980 x 2000	400 x 600	380V/3N, 220V/1N	3KW	20-300℃	Gas
DT-16Q	16 Trays	1400 x 2235 x 2420	400 x 600	380V/3N, 220V/1N	3KW	20-300℃	Gas
DT-32Q	32 Trays	1660 x 2600 x 2420	400 x 600 / 800 x 600	380V/3N, 220V/1N	3KW	20-300℃	Gas
DT-64Q	64 Trays	2008 x 2885 x 2420	400 x 600 / 800 x 600	380V/3N, 220V/1N	3KW	20-300℃	Gas
DT-12Y	12 Trays	1400 x 1980 x 2000	400 x 600	380V/3N, 220V/1N	3KW	20-300℃	Diesel
DT-16Y	16 Trays	1400 x 2235 x 2420	400 x 600	380V/3N, 220V/1N	3KW	20-300℃	Diesel
DT-32Y	32 Trays	1660 x 2600 x 2420	400 x 600 / 800 x 600	380V/3N, 220V/1N	3KW	20-300℃	Diesel
DT-64Y	64 Trays	2008 x 2885 x 2420	400 x 600 / 800 x 600	380V/3N, 220V/1N	3KW	20-300℃	Diesel

Product Introduction

1. Imported Brand Guarantee

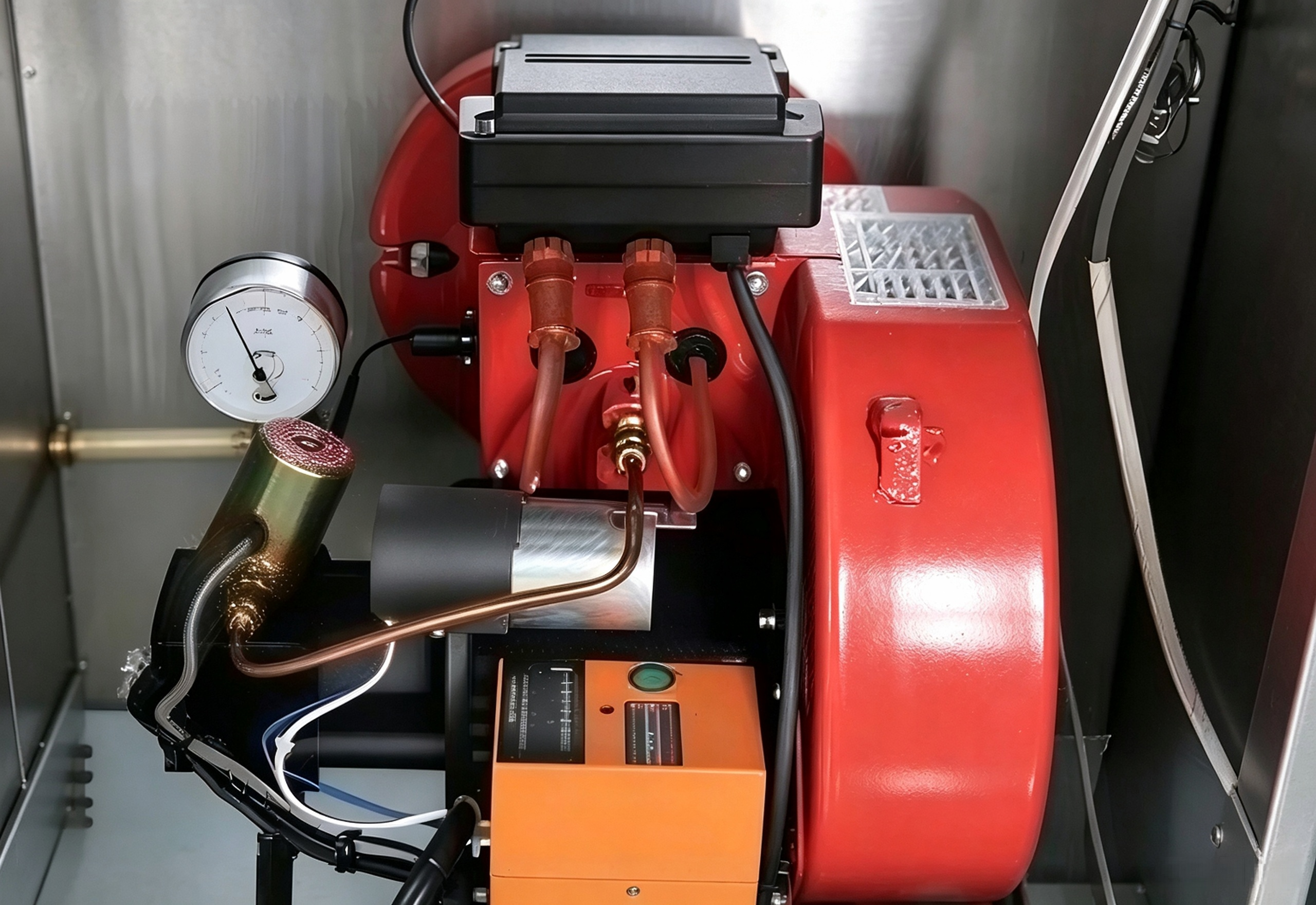

Key electrical components use imported brands such as Schneider and Omron, and all models are equipped with Japanese Olympia burners.

2. Durable & Easy to Clean

The entire body is made of stainless steel, both inside and out, offering strong rust resistance and easy cleaning.

3. Energy & Eco-Friendly

Features a highly efficient heat energy conversion system for more eco-friendly and energy-saving operation.

4. Hot Air Circulation

An excellent hot air circulation system ensures even baking.

5. Thermal Insulation

The entire machine is insulated with board cotton, providing superior thermal insulation and effectively improving heat energy utilization.

6.16/32/64 Trays

Available in electric, gas, and diesel options.

Model	Capacity	Dimensions (mm)	Rack Size (mm)	Voltage	Power	Temp. Range	Tray Size (mm)

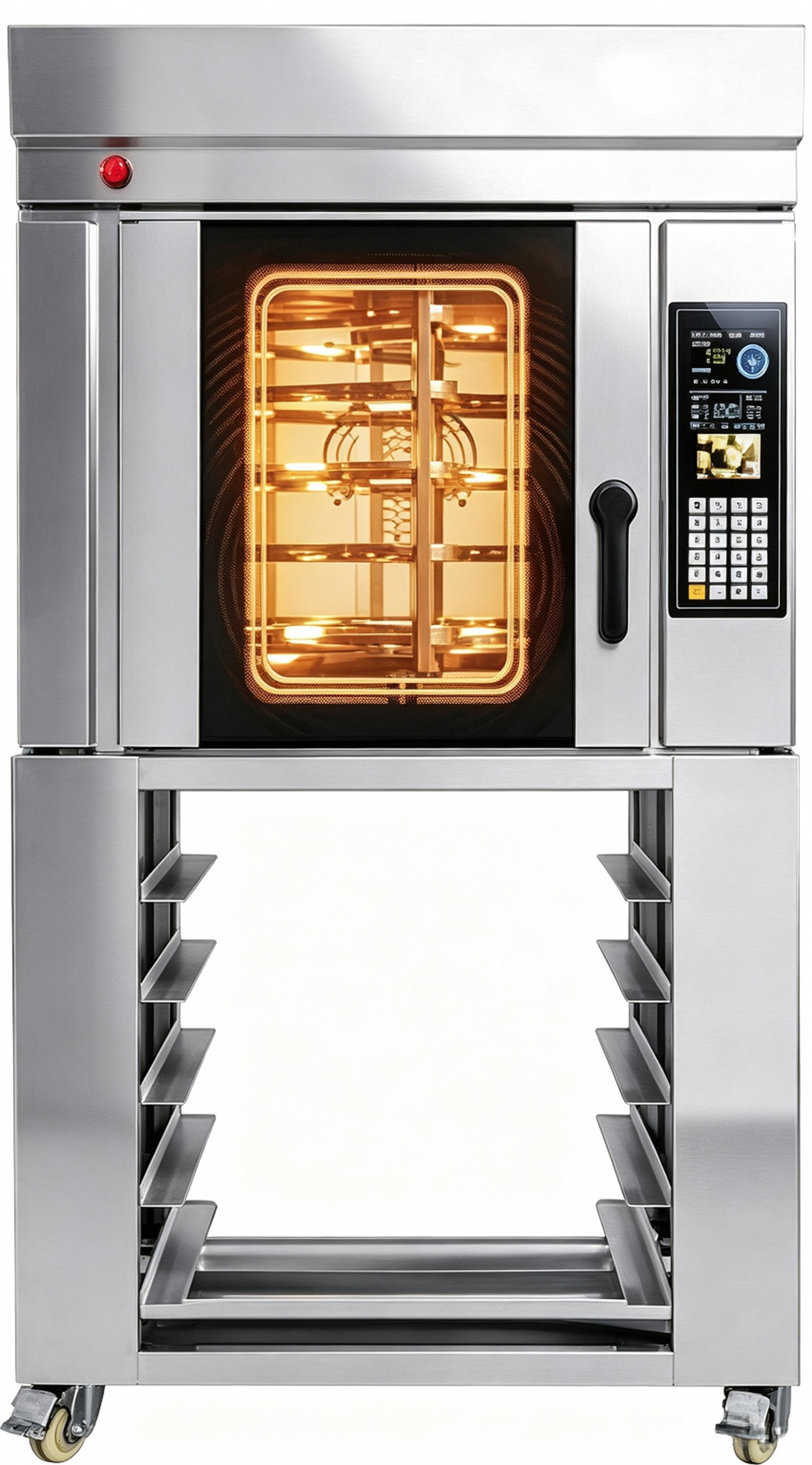

CH-5	5 Trays	1300 x 900 x 870 1300 x 900 x 1630 (with rack)	750 x 550 x 700	220-380V	9KW	0-300℃	400 x 600 x 5pcs

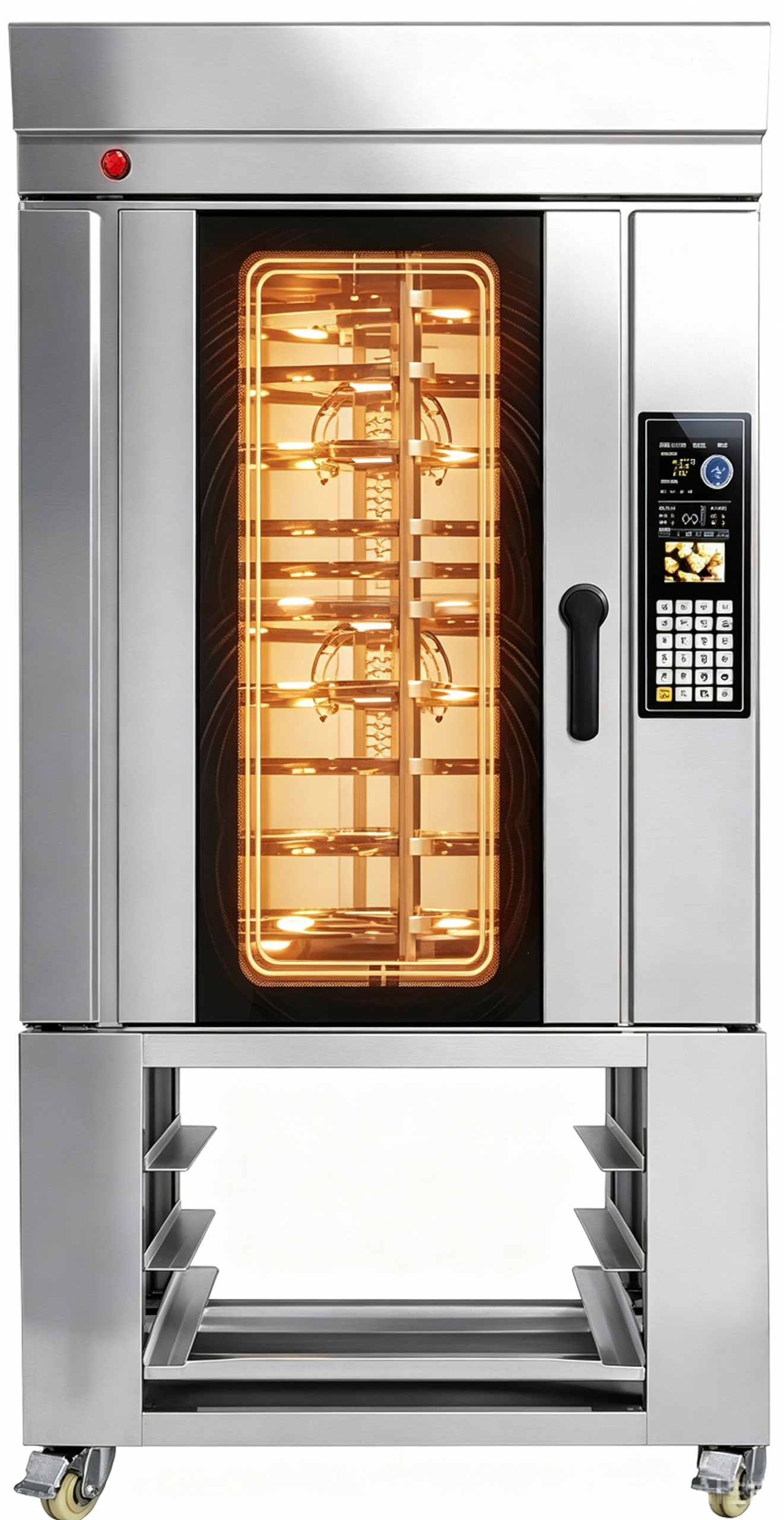

CH-10	10 Trays	910 x 1320 x 1370 910 x 1320 x 1920 (with rack)	\	220-380V	18KW	0-300℃	400 x 600 x 10pcs

Product Introduction

1. Smart control panel with a user-friendly interface

2.Rack-type hot air rotary oven

3.360-degree rotation for more even baking

4. 12 memory menus

5.Steam generator
