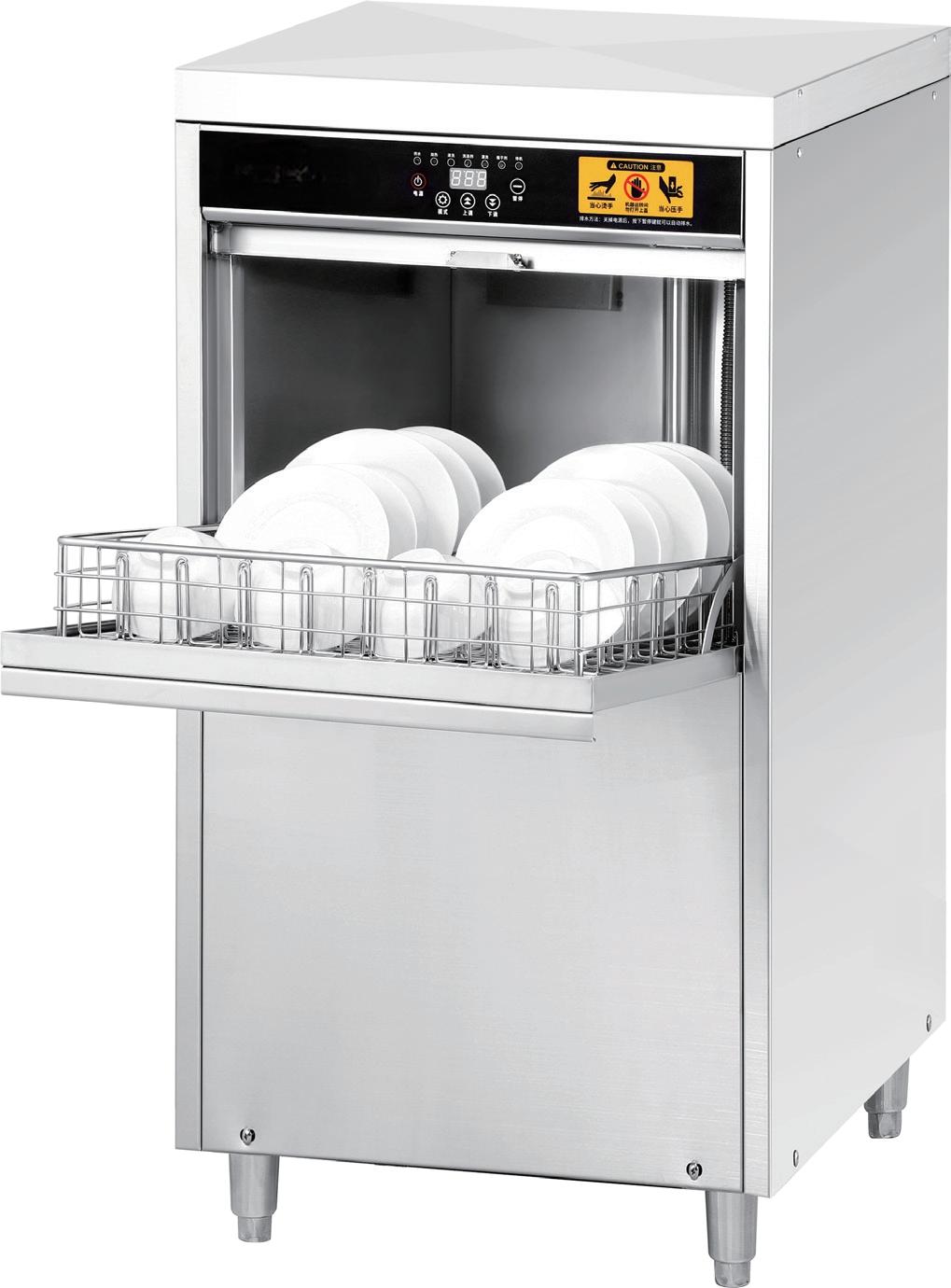

UNDERCOUNTER PLUS DISHWASHER PDX-1003JD
WHERE-TO-USE
Undercounter plus dishwasher can be used in limited kitchen spaces; under the cabinet, shelf, stairs etc. Objects can be placed above the dishwasher. It is about 200 mm shorter than door-type and does not require clearance space above.
Product Details
Product Specifications:
| MODEL | PDX-1003JD SERIES |
| TOTAL RATED LOAD | 5kW/7kW/9kW/12 kW |
| ELECTRICAL RATING | 220V,50Hz,1PH 380V,50Hz,3PH |
| CAPACITY(Racks) | 45/h |
| INLET OPENING HEIGHT | 330 mm |
| CYCLE TIME | 30~250 sec(Default:60) |
| WASH&RINSE TEMPERATURE | 65~70℃,85~95℃ |
| WASH&RINSE TANK | 34L,18 L |
| RINSE WATER CONSUMPTION | 3L/min |
| HEATER | 6.0kW,3.5 kW,2.1kW,0.8kW |
| WASH&RINSE PUMP | 0.75kW/90W |

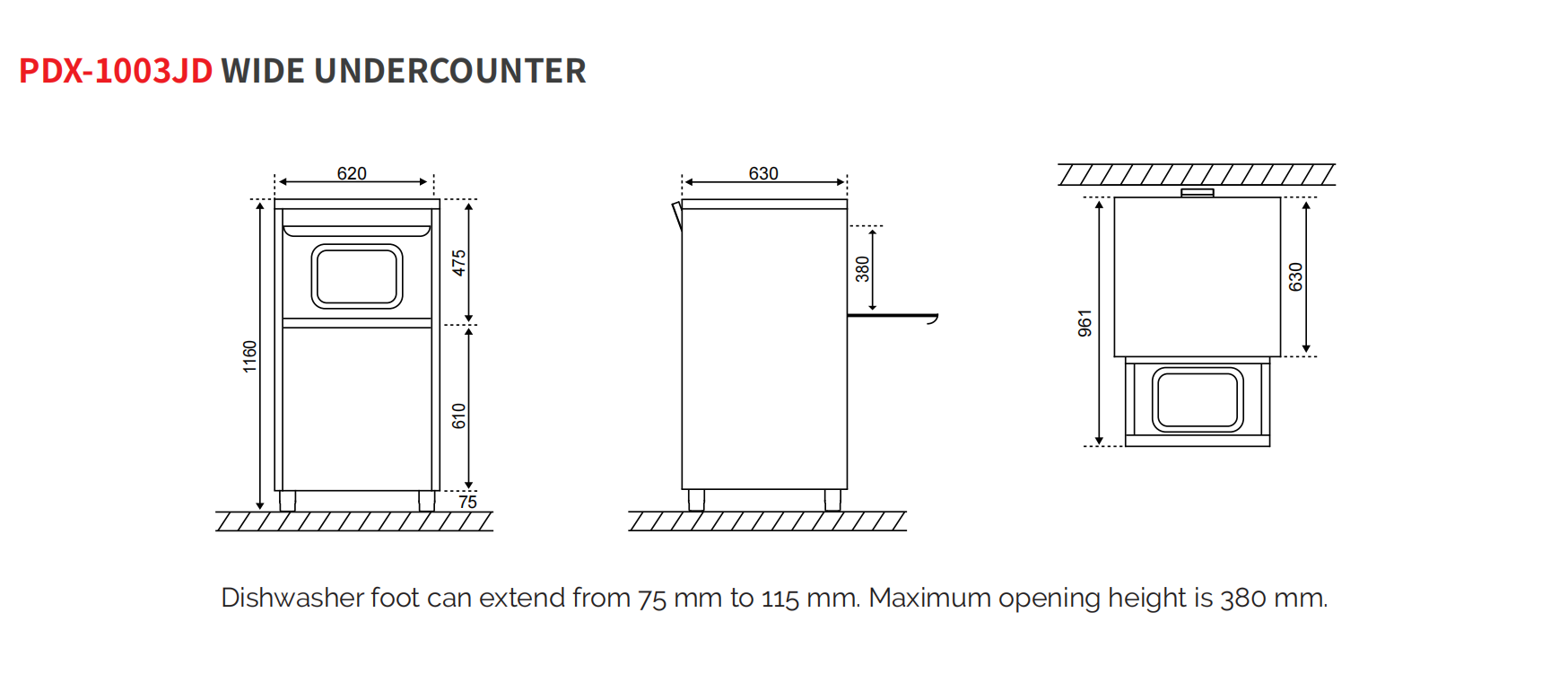

| DIMENSION (Outer),WEIGHT | 620×630×1160 mm,78 KG |
Product Features：
| 1.Tall Undercounter :PDX-1003JD undercounter plus dishwasher is 350 mm taller than the undercounter and 590 mm shorter than the，door-type dishwasher (including opening height). It can wash faster and more dishware like a door-type dishwasher. |
| 2.3 Heaters (Heating Elements) ：Total of 3 heaters are installed; 2 heaters in the rinse tank, 1 heater in the wash tank. This allows the water to be heated faster and maintain high temperature which enables the dishwasher to be used continuously. |

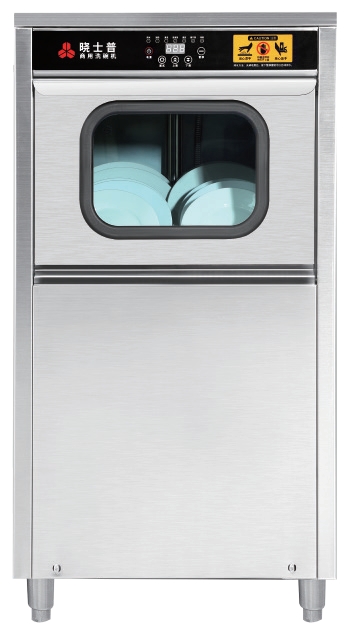

| 3.Tempered Glass Window :Washing process is observable through large tempered glass window to ensure dishware hygiene and operation. |
| 4.Electrical Compatibility :Electrical specification are available in 220V and 380V with various total rated loads; 5kW, 7kW, 9kW and 12kW. |
| 5.Internal Chemical Dispenser :Liquid chemicals can be used by connecting to the built-in chemical dispenser and solid chemicals can also be used by placing tablets on stainless tablet case located under the strainer pan. |
